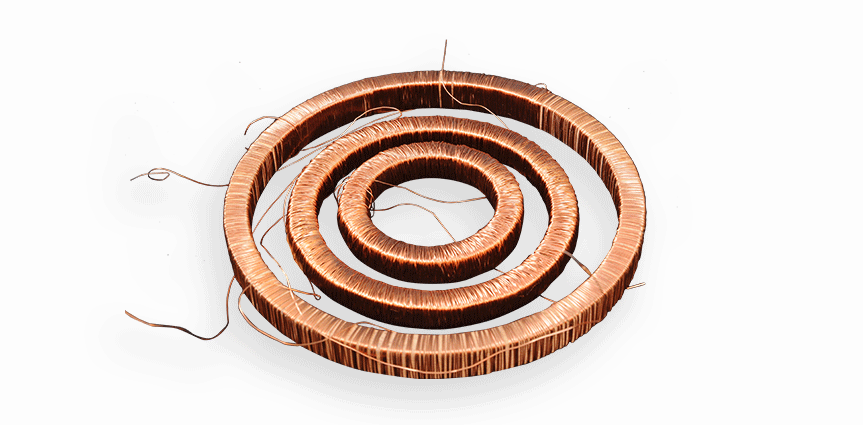

Current Transformers > Round Rectangle CBCT
Description
| Part Number | Rating | Class | Type | Ratio | A | B | C | D |
|---|---|---|---|---|---|---|---|---|
| Outer Dia | Inner Dia | Height | Lead Length | |||||

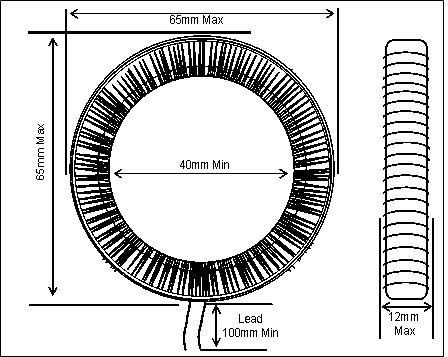

| GT-190101 | 5A | 0.5 | CBCT | 1:1000 | 65 Max | 38 Min | 14 Max | 100±10mm |
| GT-190201 | 5A | 0.5 | CBCT | 1:1000 | 100 Max | 85 Min | 13 Max | 100±10mm |
| GT-190301 | 5A | 0.5 | CBCT | 1:1000 | 145 Max | 125 Min | 15 Max | 100±10mm |

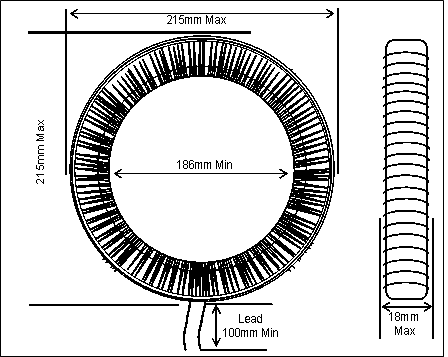

| GT-190401 | 5A | 0.5 | CBCT | 1:1000 | 215 Max | 185 Min | 20 Max | 100±10mm |
