Common Mode > EE2506 H/V
Description
| Size | Part Number | Description | Inductance 1KHz @ 0.3V | Current Rating |
|---|---|---|---|---|

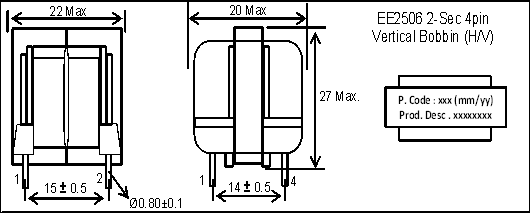

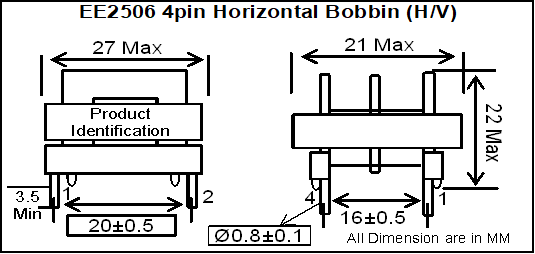

| EE25 H/V | GT-130101 | Choke EE25 05 2-Sec H/V 5.5mH | 6mH (± 10%) | 3 ~ 3.8A |
| EE25 H/V | GT-130301 | Choke EE2506 2-Sec H/V 1mH/3A | (Min) 1mH | 3A ~ 10A |
| EE25 H/V | GT-130501 | Choke EE2506 2-Sec H/V 9mH (LF-24V12) | 9mH (± 10%) | 3 ~ 3.8A |

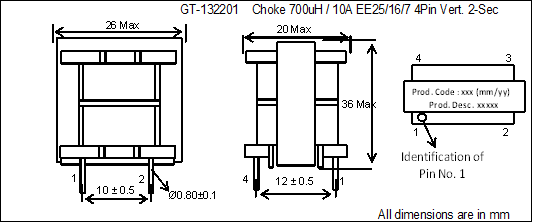

| EE25/16/7 | GT-132201 | Choke 700uH / 10A EE25/16/7 4Pin Vert. 2-Sec | 700uH Min | 10A ~ 12A |
