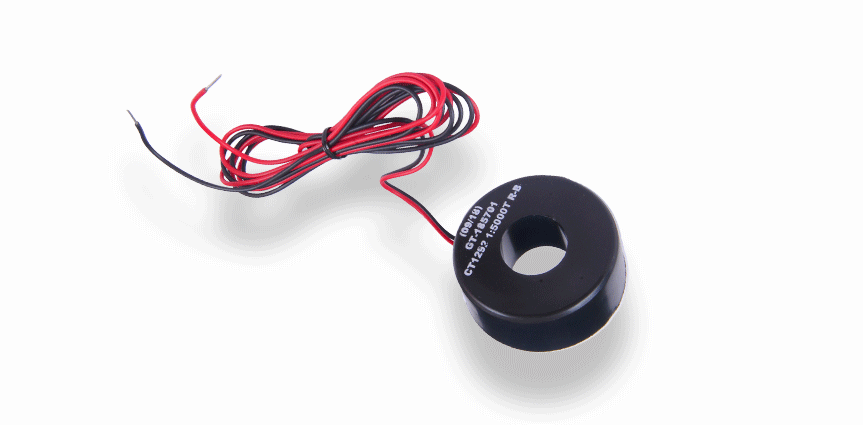

Current Transformers > Fly Lead CT
Description
| Part Number | Rating | Class | Type | Ratio | Inducdance | DCR Value |
|---|---|---|---|---|---|---|
| GT-020201 | 5A | 1.0 | Fly Lead CT | 1:2500 | 12H Min | 173 Ω Max |
| GT-050301 | 5A | 0.5 | Fly Lead CT | 1:2500 | 100H Min | 150 Ω Max |
| GT-180501 | 40A | 1.0 | Fly Lead CT | 1:2500 | 22H Min | 95Ω Max |
| GT-185501 | 40A | 3.0 | Fly Lead CT | 1:2000 | 6H Min | 100Ω Max |
| GT-185601 | 60A | 3.0 | Fly Lead CT | 1:2500 | 7H Min | 50Ω Min |
| GT-185701 | 100A | 3.0 | Fly Lead CT | 1:5000 | 10H Min | 250-300Ω |
| GT-185801 | 100A | 3.0 | Fly Lead CT | 1:5000 | 10H Min | 250-300Ω |
| GT-185901 | 100A | 3.0 | Fly Lead CT | 1:5000 | 10H Min | 250-300Ω |
| GT-186001 | 100A | 1.0 | Fly Lead CT | 1:7000 | 100H Min | 55Ω Max |
| GT-186101 | 60A | 1.0 | Fly Lead CT | 1:2525 | 15H Min | 150~200Ω |
| GT-186201 | 60A | 1.0 | Fly Lead CT | 1:2525 | 15H Min | 150~200Ω |
| GT-186301 | 60A | 1.0 | Fly Lead CT | 1:2525 | 15H Min | 150~200Ω |
