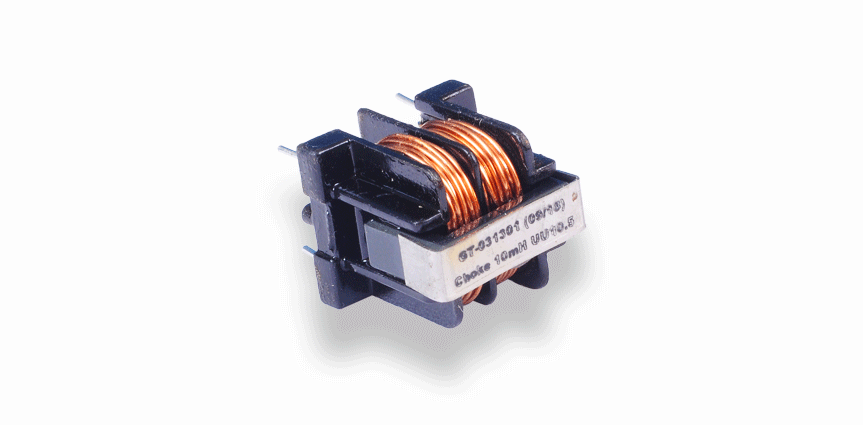

Common Mode > UU10.5
Description
| Size | Part Number | Description | Inductance 1KHz @ 0.3V | Current Rating |
|---|---|---|---|---|
| UU10.5 | GT-030101 | Choke 1.5mH / 2A UU10.5 (Black Araldite) | (Min) 1.5mH | 3 ∼ 3.5A |
| UU10.5 | GT-030201 | Choke 1.5mH / 1A UU10.5 | (Min) 1.5mH | 3 ∼ 3.5A |
| UU10.5 | GT-030301 | Choke 5.6mH / 2A UU10.5 | (Min) 5.6mH | 1.5A ∼ 2A |
| UU10.5 | GT-030701 | Choke 6mH / 1A UU10.5 4Pin | (Min) 6mH | 1.5A ∼ 2A |
| UU10.5 | GT-030801 | Choke 8mH / 350mA UU10.5 4Pin | (Min) 8mH | 700mA ∼ 1A |
| UU10.5 | GT-030901 | Choke 12mH / 500mA UU10.5 4Pin | (Min) 12mH | 500 ∼ 800mA |
| UU10.5 | GT-031001 | Choke 22mH / 250mA UU10.5 4Pin | (Min) 22mH | 500 ∼ 800mA |
| UU10.5 | GT-031301 | Choke 10mH / 0.45mm UU10.5 | (Min) 10mH | 3 ∼ 3.5A |
