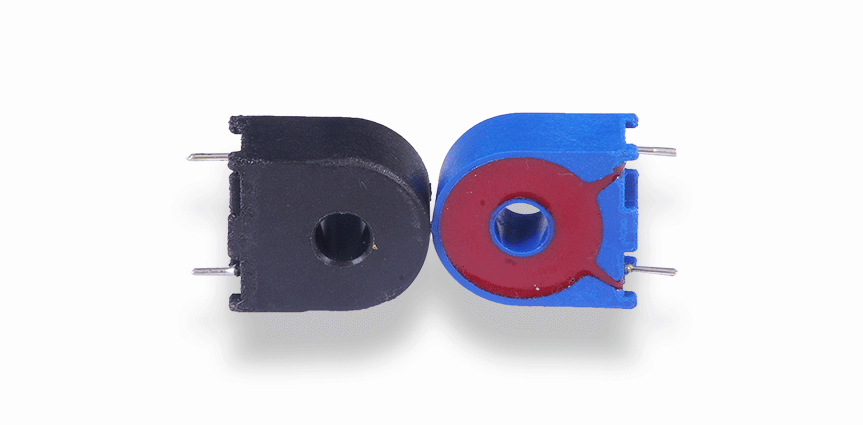

Current Transformers > Mini CT
Description

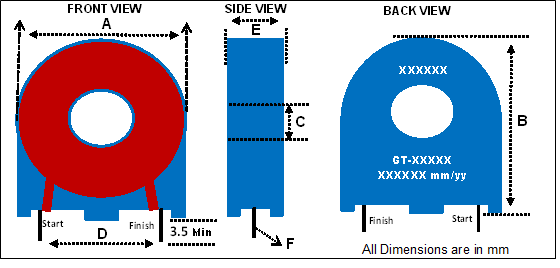

| Part Number | Rating | Class | Type | Ratio | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|---|---|---|
| GT-020301 | 5A | 1.0 | Mini-CT | 1:250 | 17.5 Max | 21 Max | Ø4.5 Min | 12.5±0.5 | 10.5±0.5 | 0.8±0.1 |
| GT-020401 | 5A | 1.0 | Mini-CT | 1:700 | 17.5 Max | 21 Max | Ø4.5 Min | 12.5±0.5 | 10.5±0.5 | 0.8±0.1 |
| GT-020701 | 5A | 1.0 | Mini-CT | 1:200 | 17.5 Max | 21 Max | Ø4.5 Min | 12.5±0.5 | 10.5±0.5 | 0.8±0.1 |
| GT-021001 | 2A | 1.0 | Mini-CT | 1:100 | 17.5 Max | 21 Max | Ø4.5 Min | 12.5±0.5 | 10.5±0.5 | 0.8±0.1 |
| GT-060101 | 5A | 0.5 | Mini-CT | 1:1500 | 17.5 Max | 21 Max | Ø4.5 Min | 12.5±0.5 | 10.5±0.5 | 0.8±0.1 |
| GT-060102 | 5A | 0.5 | Mini-CT | 1:1500 | 17.5 Max | 21 Max | Ø4.5 Min | 12.5±0.5 | 10.5±0.5 | 0.8±0.1 |
| GT-060201 | 2A | 0.5 | Mini-CT | 1:1000 | 17.5 Max | 21 Max | Ø4.5 Min | 12.5±0.5 | 10.5±0.5 | 0.8±0.1 |
| GT-060202 | 2A | 1.0 | Mini-CT | 1:1000 | 17.5 Max | 21 Max | Ø4.5 Min | 12.5±0.5 | 10.5±0.5 | 0.8±0.1 |
| GT-060301 | 5A | 0.5 | Mini-CT | 1:2500 | 17.5 Max | 21 Max | Ø4.5 Min | 12.5±0.5 | 10.5±0.5 | 0.8±0.1 |
